      How to prepare your tow vehicle for your new Zone RV - trailer plug configuration

      Trailer plug configuration

      We kindly ask that you become familiar with the electrical installation requirements of your tow vehicle. It's important to read and understand all the information carefully and take the necessary action as soon as possible to avoid disappointment during the handover. This will ensure that your tow vehicle is compliant and that everything is tested prior to departure. It's best to discover any issues before you tow your new investment.



      Before you can start using your RV, your vehicle may need to be equipped with compatible auto-electric wiring. To ensure your safety, we recommend that you hire an auto-electrician to perform the following works, depending on your specific needs:
      • Install a 7-pin trailer flat plug (It is recommended to have an additional earth connection from the trailer plug to the chassis)
      • Install a 50A Grey Anderson plug (Use a minimum of 6B&S cable and ensure that it is independently fused and complete with an ignition relay)
      • Install an electric brake controller.

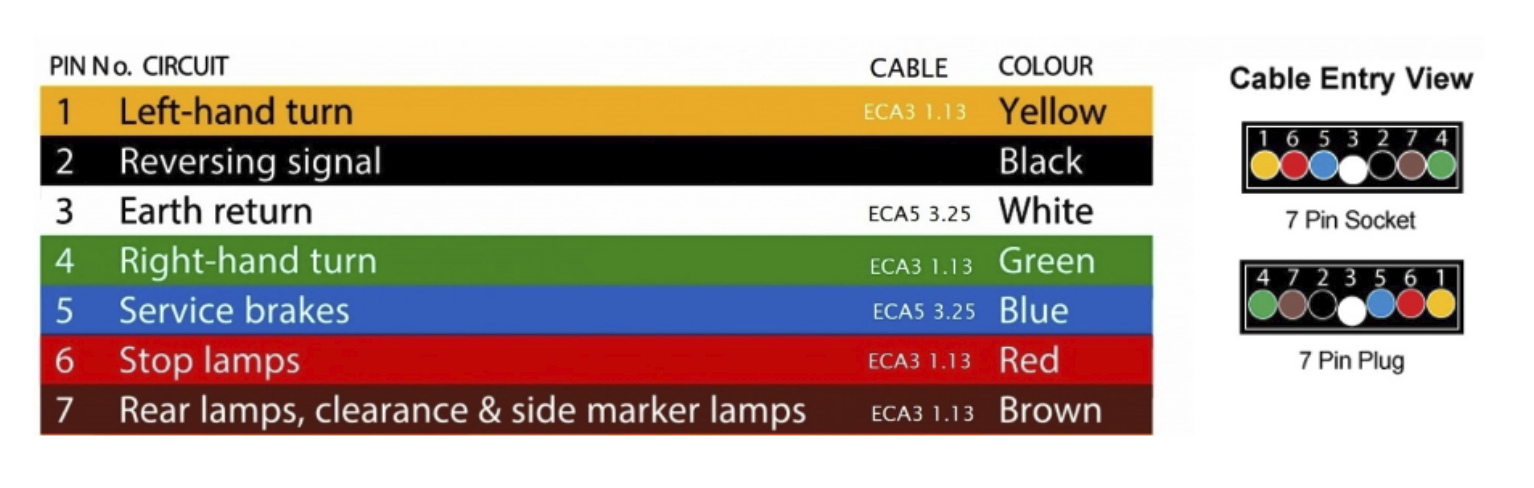

      VIEW 7 PIN TRAILER PLUG CONFIGURATION

      Screenshot 2024-02-20 at 3.10.25 pm


      Wiring Your Car’s Grey Anderson Plug to Connect to Your Caravan’s Redarc Manager 100 System

      Location: Front of drawbar:

      The Grey Anderson Plug (or 50A Anderson Plug) allows high-current 12V power to flow between your car and caravan. In this setup, the power from your car’s alternator is directed to your caravan’s battery system. The Redarc Manager 100 uses this input to charge the caravan’s auxiliary battery, ensuring a steady supply of power for your caravan’s lights, fridge, and other electrical needs.

      To ensure proper safety and functionality, it’s essential to install a 50A fuse with an ignition relay. This will prevent your caravan from drawing power from your car when parked with the engine off, protecting both your vehicle and caravan’s electrical systems.

      It’s also recommended to cable tie the Anderson plug to your trailer plug for added support. This will help prevent the Anderson plug from disconnecting and dragging on the ground.

      Important: You mustn't plug anything besides a vehicle alternator into this Anderson plug. Doing so could cause damage to your electrical system.

      For the best results and to ensure the work is done safely and correctly, it’s recommended to have a qualified auto electrician complete the installation.
